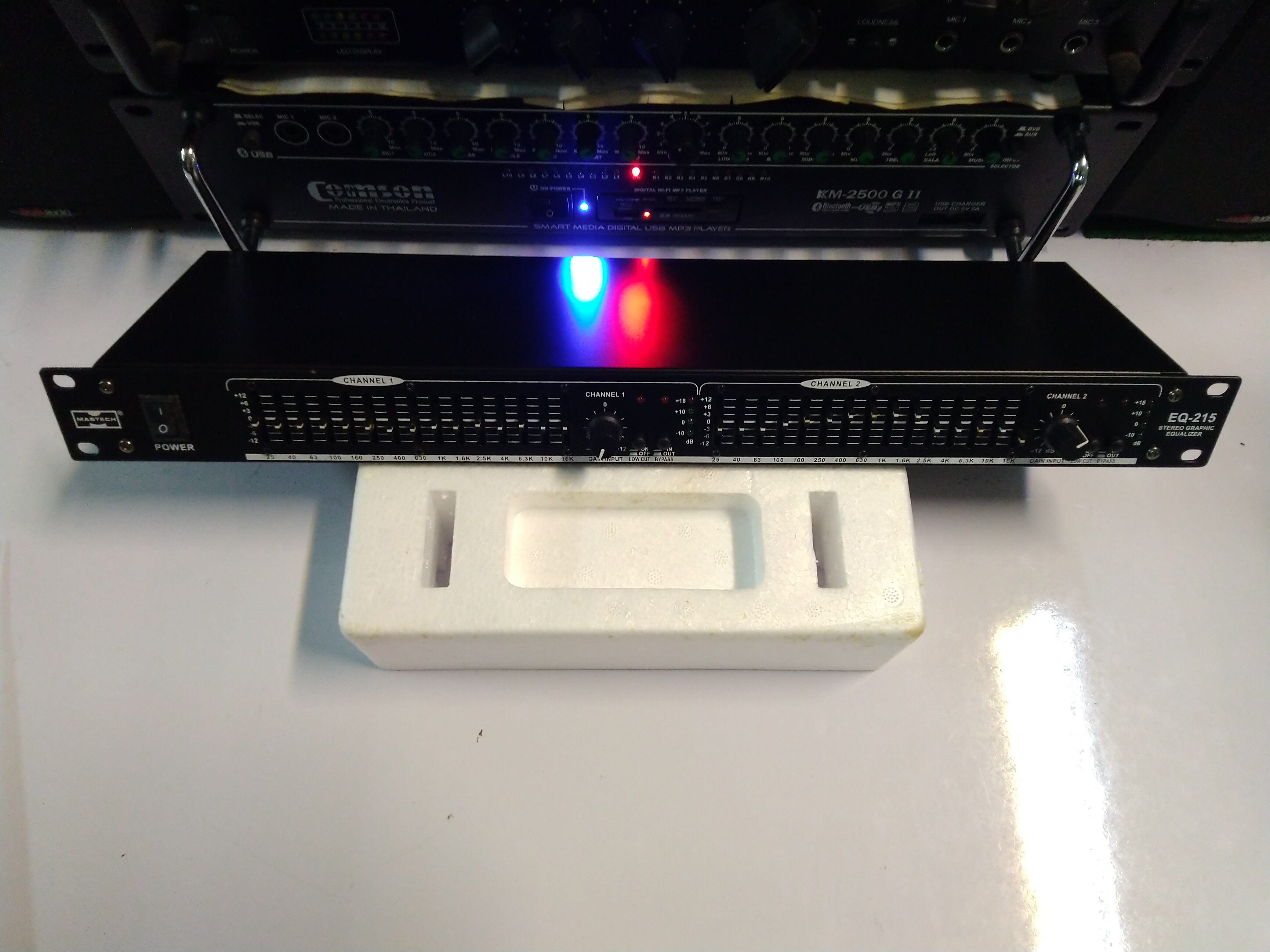

MASTECH EQ 215

equalizer control bands 2x15 octave iso spacingfrom 25 hz to 16 khz filter type contstant q slider travel 20 mm(center detent) for 215 level control range +/-12 db input: type active balanced /unbalance conectors 3-pin xlr,1/4 ts ( balanced) impedanced 40 k ohms balanced ,20 k ohms unbalanced maximum level 28 dbv output: type unbalanced conectors 3-pin,xlr ,1/4 trs impedancetypically< 400 ohms maximum level +/-20 dbv clip led treshold 3 db( below clipping) low cut filter 40 hz ,12 db/octave frequency response  20 hz-20 khz +/- 1 db thd + noise <0.008%@ 1 khz all fandes at mid position ) signal to noise ratio 95 db( @.1'' khz) channel seperation 60 db (1 khz) line voltage 115-230 v ac,50/60 hz power consuption maximum 15 watts size: 19 '' w x 1.7'' h x 8.66''d (1 u ) ( 48.2 cm x4.4 cm x12.7 cm for 215 weight : 1.9 kg (215)
