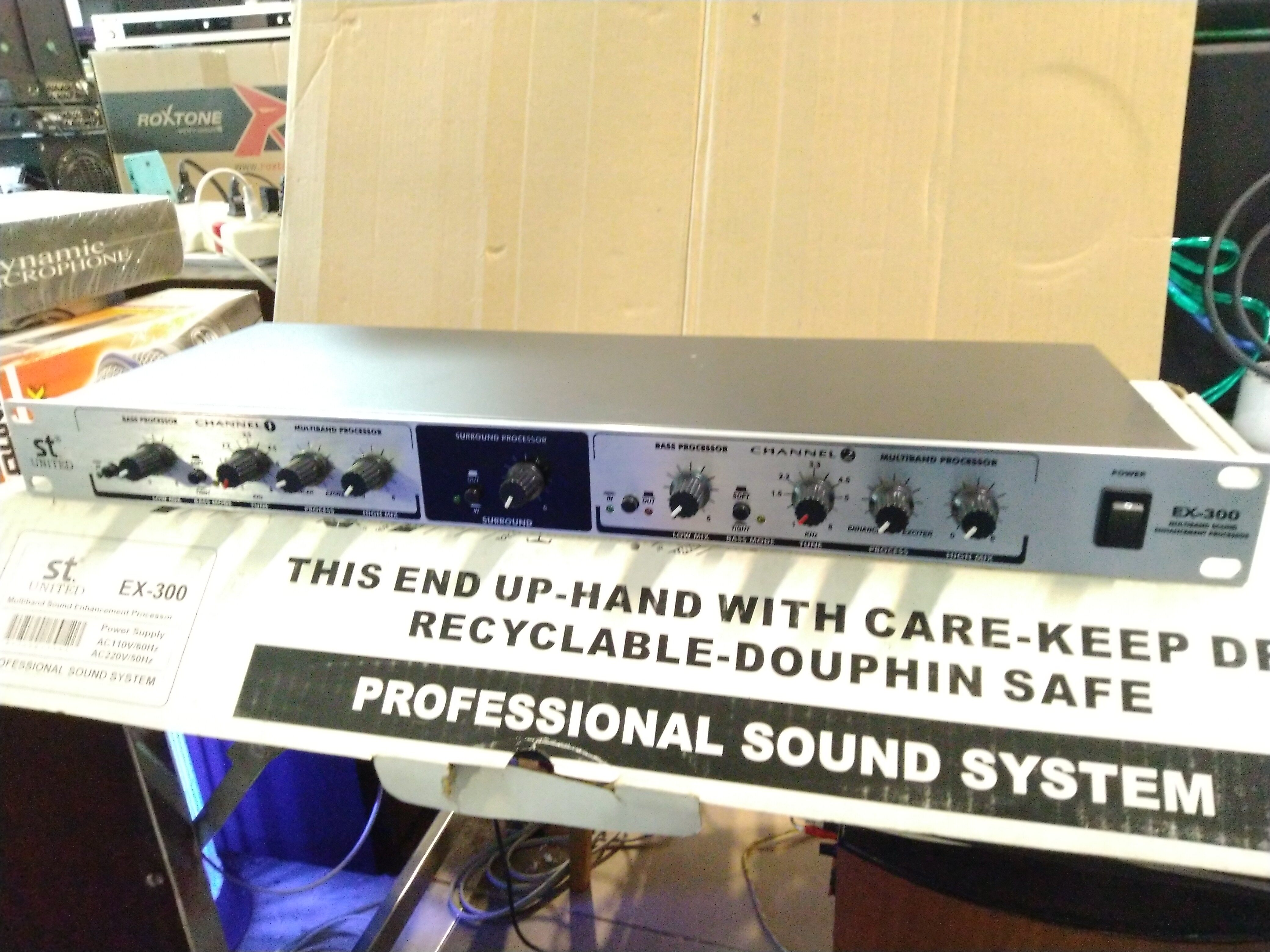

ST. UNITED EX 300

processor specification audio inputs connectors xlr and1/4'' trs jack type rf filtered, servo balanced inputs impedance +/- 12 kohms max, input level 21 dbu cmrr 40 db , >55 db@ 1 khz audio outputs connectors xlr and 1/4'' trs jack type unbalance output stage impedance +/- 45 ohms balance max, input level 21 dbu system specifications bandwitch 20 hz-20 khz +/- 0.5 db frequency response 5 hz to 100 khz +/-3 db noise > 95 db, unweighted, 22 hz to 22 khz thd 0.008% typ,@+4 dbu, 1 khz gain 1 0.04% typ. @ + 20 dbu 1 khz, gain 1 imd 0.01% typ smpte crosstalk <- 100 db, 22 hz to 22 khz bass processor type dual mode soft to tight low mix variable ( 0 to 6; off to max ) multiband processor type natural sonic'' variable'' tune variable ( 1 to 8 khz ) process variable ( enhancer to exciter ) high max variable ( 0 to 6; off to max) surround section surround variable ( 0 to 6; off to max) fuction switches and controls mode switches the bass sound from '' soft'' to tight'' in/out activeates the relay controled hard-bypass surround activeates the surround processor  dimensions 483 x44 x 163.5 mm weight 2.15 kg.
