ONKYO TX-NR609(ส่งฟรี ยกเว้นเขตพิเศษ)

Marvell Qdeo 4K Upscaling

6 HDMI 1.4a Inputs / 1 HDMI 1.4a Output

Stream PC Audio and Internet Radio

Supports 3D Video and ARC

Offering an irresistible blend of affordability and high-end features, the Onkyo TX-NR609 7.2 Network A/V Receiver is a capable cornerstone for your home theater system. This THX Select2 Plus Certified A/V receiver handles content from disc-based media but also networked audio content from the internet, your iPod or iPhone, and even your PC.

The TX-NR609 includes ample connections for your other components with six (6) HDMI 1.4a inputs including one on the front panel. These carry 3D video, Audio Return Channel (ARC) and ultra-high resolution 4K video upscaling via Marvell Qdeo. The integrated chip also upscales to full HD 1080p resolution (1920 x 1080 pixels).

Like any worthwhile receiver, the TX-NR609 also carries advanced audio formats via HDMI from Dolby and DTS, as well as the expanded surround sound of Audyssey DSX and Dolby Pro Logic IIz. Since Blu-ray discs are often encoded with one or more of these formats, this receiver ensures you won't miss any details of your favorite movie soundtracks.

Three-stage inverted Darlington circuitry and Onkyo's proprietary WRAT technology ensure a clean and compelling amplifier performance, and 192K/24-bit Burr Brown D/A converters are employed for all channels. When audio signals are output, the 7.2-channel configuration includes dual subwoofer pre-outs for added bass impact for your favorite movies and music.

Meanwhile, a user-friendly on-screen display (OSD) and graphical user interface (GUI) make it easy to adjust settings and navigate your content. All these features and networking connectivity are housed in a sturdy chassis with a sleek aluminum front. Clearly, the TX-NR609 is a solid choice for the value-conscious home entertainment enthusiast.

More Details

No Longer Available

SharePrint

Shipping Restriction:

Ships to USA only

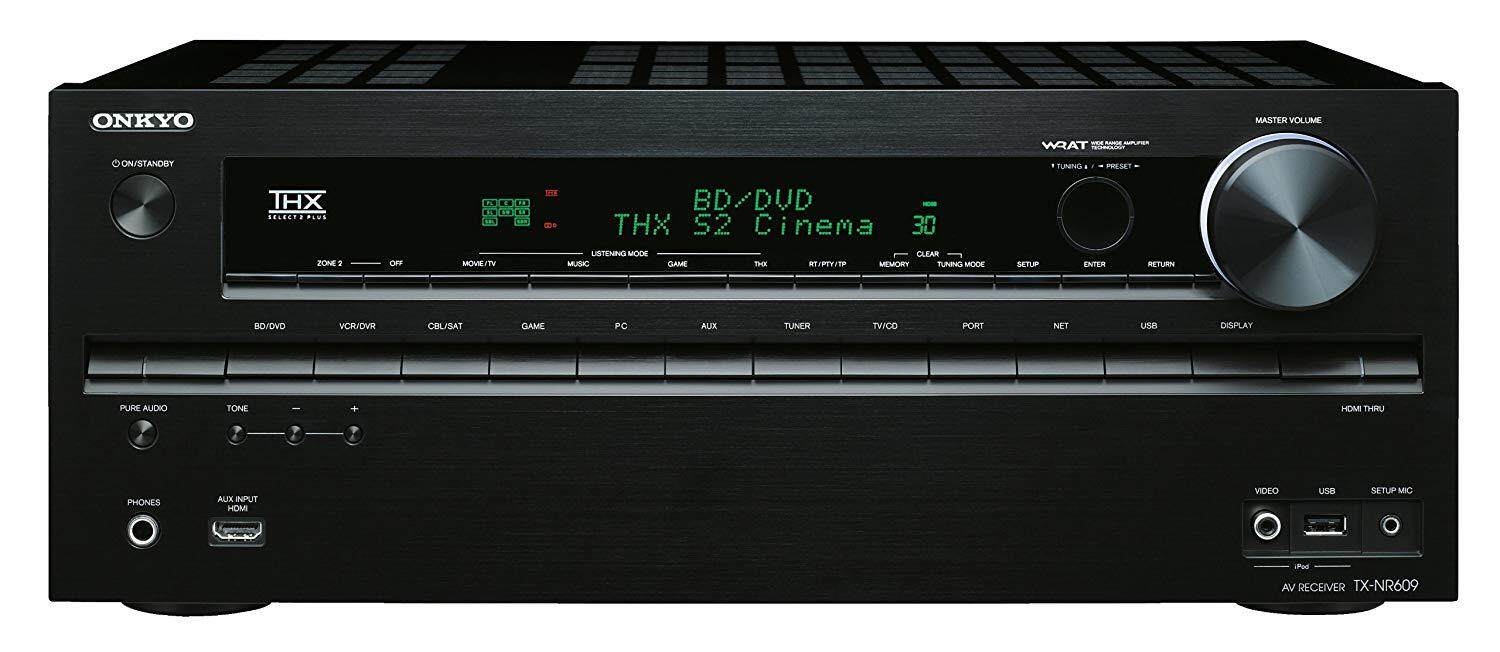

Onkyo TX-NR609 7.2 Network A/V Receiver

Not Available

True Know-How

Ask Our Experts

Live Chat

800.606.6969

Email

Recommended AccessoriesView All

APC H10 Home Theater Power Conditioner

$209.76

Add to Cart

OVERVIEW

SPECS

REVIEWS17

Q&A

QUICK COMPARE

ACCESSORIES

TO TOP

Onkyo TX-NR609

Amplifier



Power Output

Front L/R

100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC)

125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)

Center

100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC)

125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)

Surround L/R

100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC)

125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)

Surround Back L/R

100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC)

125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)

Dynamic Power

240 W (3 ohms, 1 ch)

210 W (4 ohms, 1 ch)

120 W (8 ohms, 1 ch)

Total Harmonic Distortion (THD)

0.08% (20 Hz-20 kHz, Half power)

Damping Factor

60 (Front, 1 kHz, 8 ohms)

Input Sensitivity

200 mV/47 k-ohms (Line)

Output Level

200 mV/2.2 k-ohms (Rec out)

Frequency Response

5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)

Tone Control

±10 dB, 50 Hz (Bass)

±10 dB, 20 kHz (Treble)

Signal to Noise Ratio

106 dB (Line, IHF-A)

Speaker Impedance

6 - 16 ohms

No. of Channels

7.2

Audio Processing

Dolby Digital

Dolby Digital Plus

Dolby EX

Dolby TrueHD

Dolby Pro Logic II

Dolby Pro Logic IIx

Dolby Pro Logic IIz Height

DTS

DTS Express

DTS-HD High Resolution Audio

DTS 96/24

DTS-ES Discrete

DTS-ES Matrix

DTS-HD Master Audio

DTS Neo: 6

DTS Neo: 6 Cinema

DTS Neo: 6 Music

Audessy DSX

Onkyo Original DSP Listening Modes

Orchestra

Unplugged

Studio-Mix

TV Logiv

Game- PRG

Game- Action

Game- Rock

Games- Sports

All Channel Stereo

Theater-Dimensional

THX Certified

Yes, THX Select2

D/A Conversion

192K/24-bit Burr Brown

Video



Input Sensitivity

1 Vp-p/75 ohms (Component)

0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)

1 Vp-p/75 ohms (Composite)

Frequency Response

5 Hz-100 MHz, -3dB (Component Video)

Convenience



Speaker Selector

No

Multi Room/Source

Yes

AM/FM Tuner

40 FM/AM Presets

FM Tuning Frequency Range:

87.5 MHz-107.9 MHz

AM Tuning Frequency Range:

530 kHz-1,710 kHz

FM Sensitivity

Not Specified by Manufacturer

Remote Control

IR Wireless

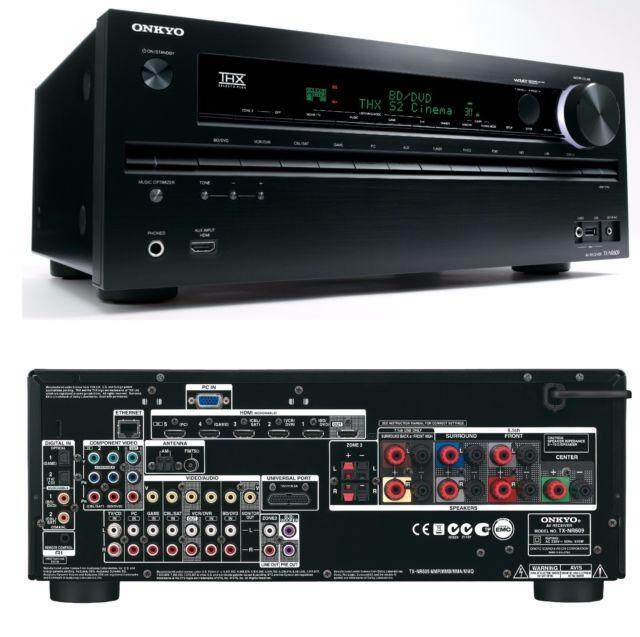

Connectors



Inputs

HDMI 1.4a x 6 (5+1)

Audio Input x 7

Digital Audio Input (Optical/Coaxial) x 2

Composite Video Input x 5

Component Video (Y, Pb, Pr) x 2

iPod Ready (Direct USB input, Optional UP-A1)

HD Radio Ready (Optional UP-HT1)

Outputs

HDMI 1.4a x 1

Audio Output x 2

Composite Video Output x 1

Component Video (Y, Pb, Pr) x 1

Zone 2 Line Out (RCA L/R Pair) x 1

Subwoofer Pre-Out x 2

Other Ports

PC Input (15 pin D-sub) x 1

Ethernet Port x 1

RI System Control x 1

Universal Port (For optional iPod dock or HD Radio receiver) x 1

Video Input Conversion

Marvell Qdeo Analog to HDMI Upconversion

Video Input Upscaling

Marvell Qdeo 4K (3480 x 2160) Upscaling (also up to 1080p)

General



Power Requirements

AC 120 V, 60 Hz

Power Consumption

3.9 A

Dimensions (WxHxD)

17.1" x 6.8" x 12.9" (435 x 173.5 x 328 mm)

Weight

24.7 lb (11.2kg)

Packaging Info

Package Weight

29.6 lb

Box Dimensions (LxWxH)

22 x 16.5 x 11.5"
