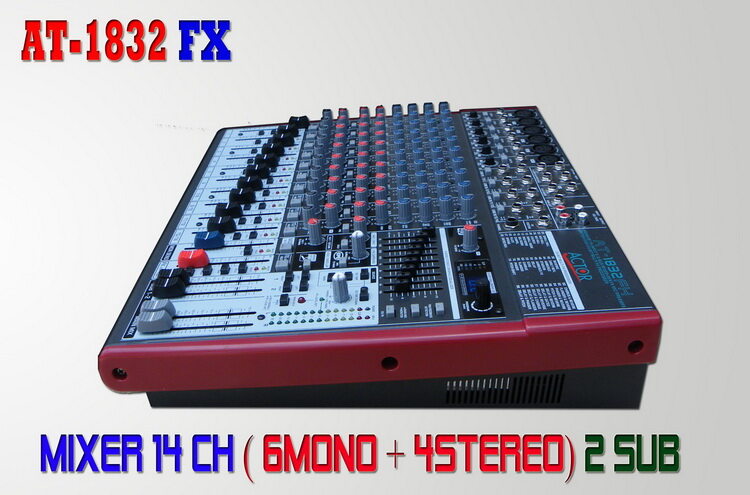

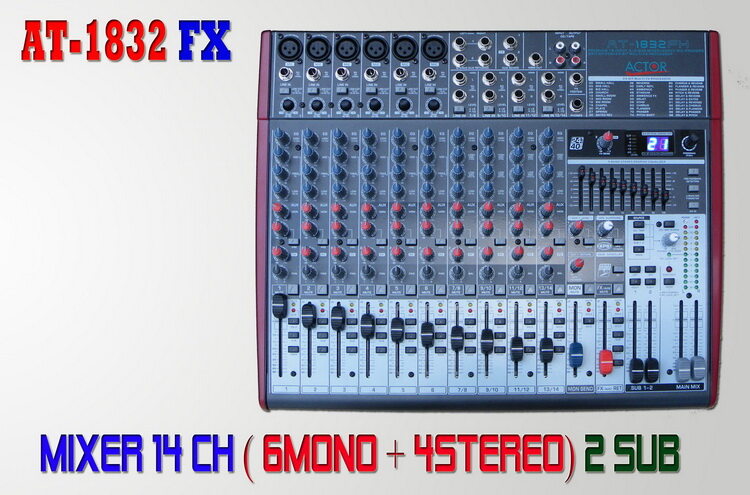

Mixer Actor มิกเซอร์ 14 แชนแนล มีเอฟเฟคในตัว รุ่น AT-1832FX (สีเทา)

Microphone inputs

Mic E.I.N (20 Hz – 20 kHz)

@ 0 ohm source resistance -134 dB / 135.7 dB A weighted

@ 50 ohm source resistance -131 dB / 133.3 dB A weighted

@ 150 ohm source resistance -129 dB / 130.5 dB A weighted

Frequency response <10 Hz – 150 kHz (-1 dB),

<10 Hz – 200 kHz (-3 dB)

Gain rang +10 to +60 dB

Signal-to-noise ratio 110 dB / 112 dB A weighted

(0 dBu In @ +22 dB gain)

Distortion (THD+N) 0.005% / 0.004% A weighted

EQ mono channels

Low 80 Hz / +- 15dB

Mid 100 Hz – 8 kHz / +- 15 dB

High 12 kHz / +- 15 dB

EQ stereo channels

Low 80 Hz / +- 15dB

Low Mid 500 Hz / +- 15 dB

High Mid 3 kHz / +- 15 dB

High 12 kHz / +- 15 dB

DSP

Converter 24-bit Sigma-Delta,

64/128-times oversampling

Sampling rate 40 kHz

Power Supply

Main voltage 220 V 50 Hz

Power consumption 40 W
