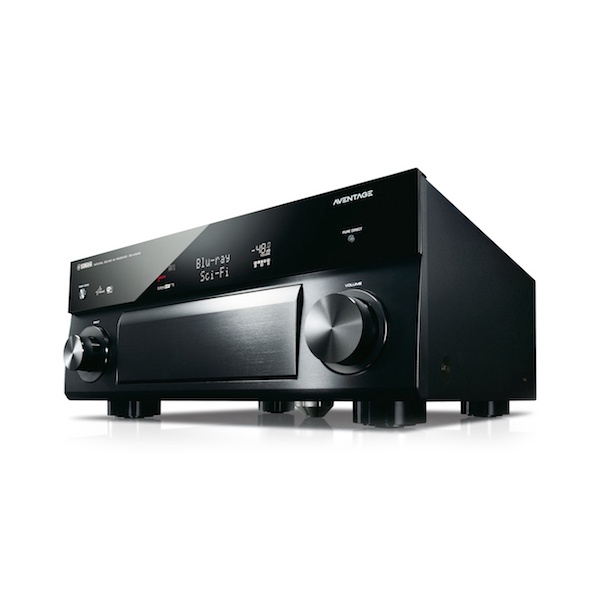

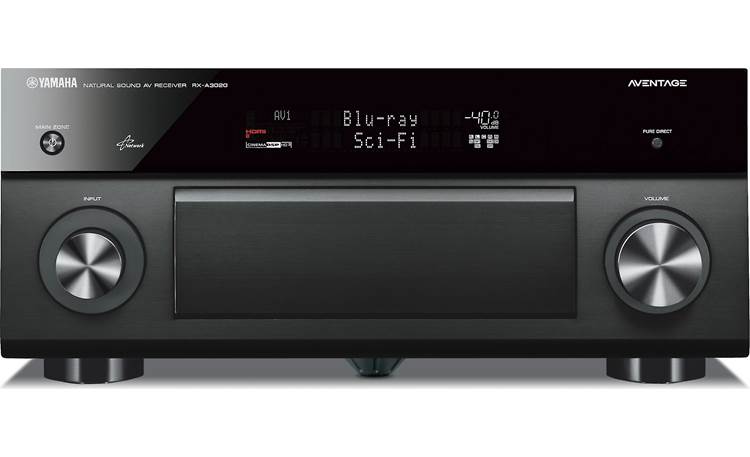

YAMAHA RX-A 3020

AV Receiver

Amplifier Section

Channel

Rated Output Power (1kHz, 1ch driven)

Rated Output Power (20Hz-20kHz, 2ch driven)

Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)

Dynamic Power per Channel (8/6/4/2 ohms)

Surround Sound Processing

CINEMA DSP

DSP Programs

Dialog Level Adjustment

Virtual Presence Speaker

Dialogue Lift

SILENT CINEMA / Virtual CINEMA DSP

Dolby TrueHD

Dolby Digital Plus

Dolby Pro Logic IIx

DTS-HD Master Audio

Audio Features

Pure Direct

Compressed Music Enhancer

High-resolution Music Enhancer

YPAO multi-point measurement

Adaptive DRC (Dynamic Range Control)

Initial Volume & Maximum Volume Setting

A.R.T. Wedge

Bi-amp capability

Audio Delay

192kHz/24-bit DACs for all channels

Video Features

4K Ultra HD Pass-through and upscaling

HDMI 3D passthrough

HDMI Audio Return Channel

Component upconversion

HDMI upscaling

Video adjustment

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync

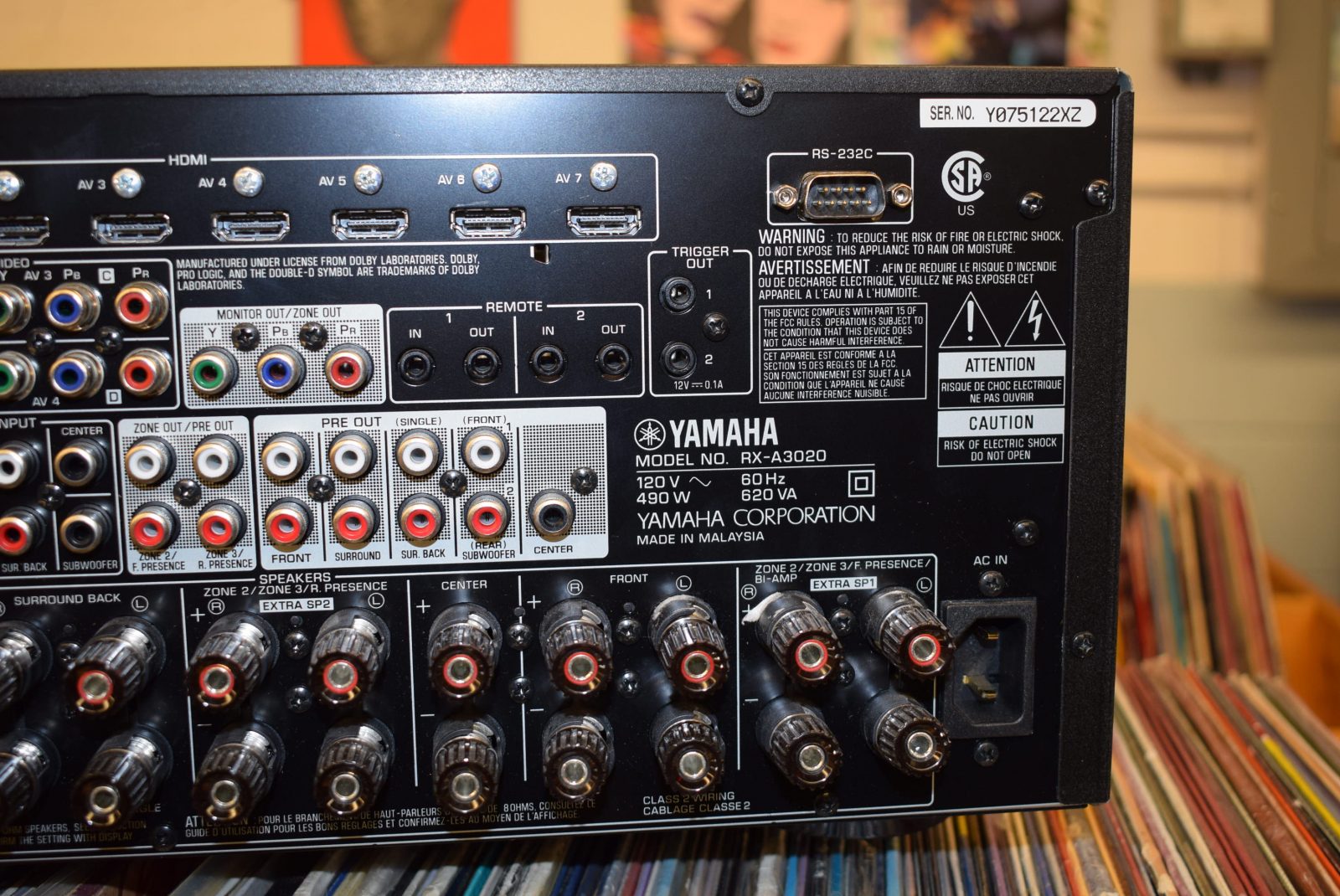

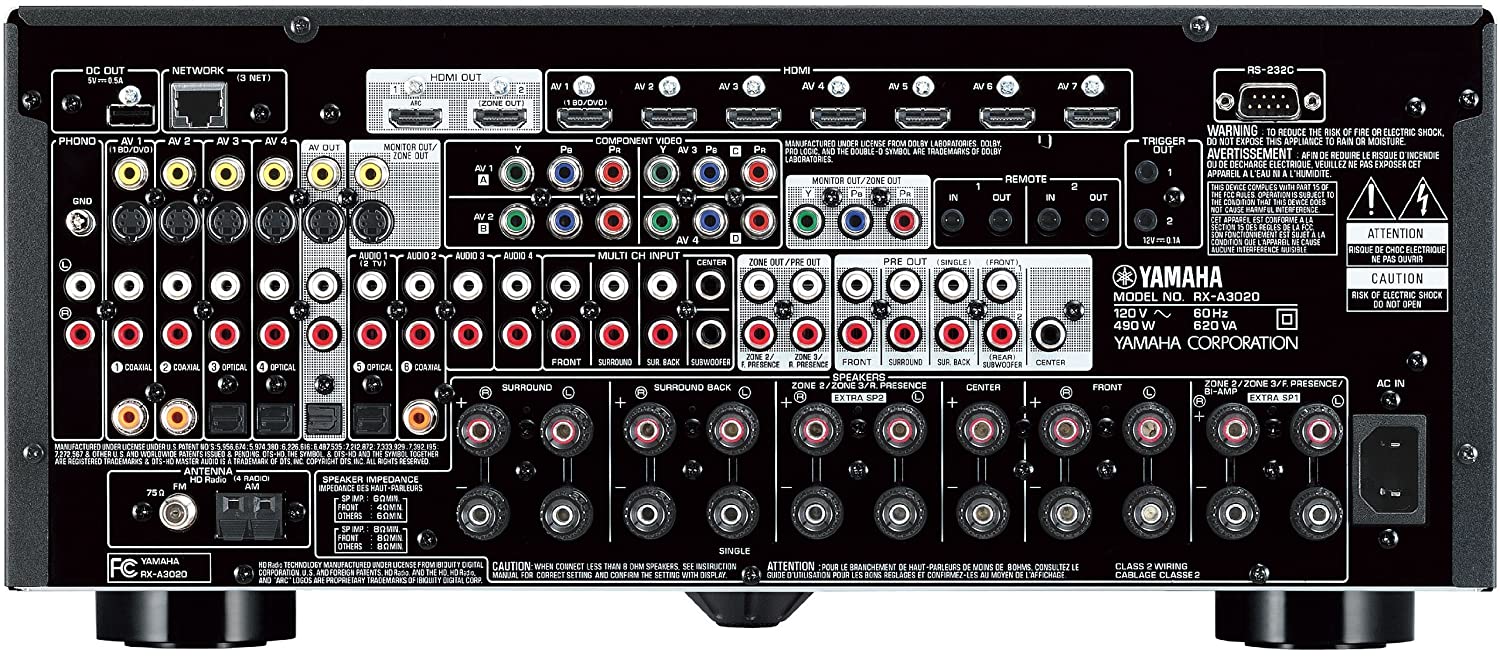

Connectivity

HDMI Input/Output

HDMI CEC

USB Input

Network Port

AirPlay

Front AV Input

Digital Audio Input/Output: Optical

Digital Audio Input/Output: Coaxial

Analog Audio Input/Output

Phono Input

Component Video Input/Output

S-Video Input/Output

Composite Video Input/Output

Multi-Channel Input

Preout

Headphone Output

Tuner Section

FM/AM Tuner

User Interface

On-screen display

SCENE

App Control

Web Browser Control

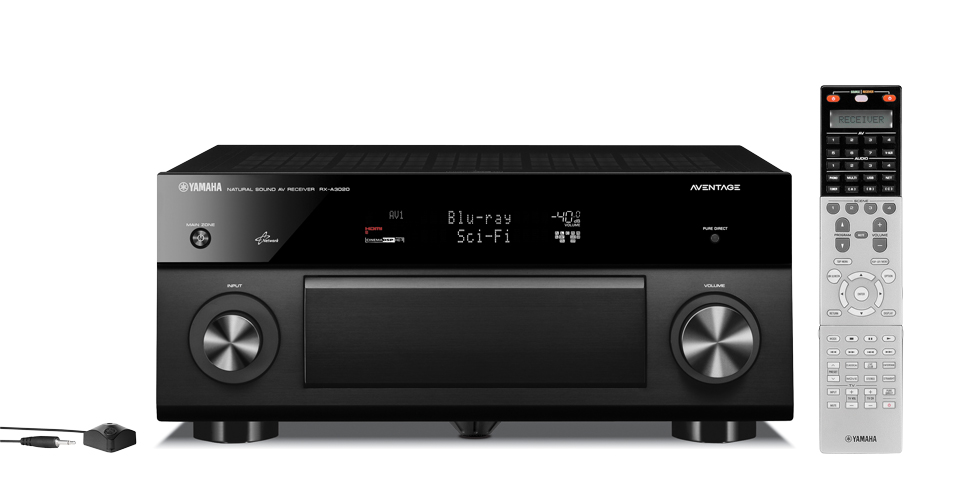

Remote Control Unit

Zone Control

Zone 2 Audio Output

Zone 3 Audio Output

Zone 4 Audio Output

Powered Zone

Zone Video Output

Zone HDMI

Zone GUI

RS-232C Interface

+12V Trigger Output

Remote (IR) Input/Output

Party Mode

General

Standby Power Consumption (IR only)

Auto Power Standby

ECO mode

Dimensions (W x H x D)

Weight

RX-A3020

RX-A3020AV ReceiverAmplifier SectionChannel9.2Rated Output Power (1kHz, 1ch driven)230W (4ohms, 0.9% THD)Rated Output Power (20Hz-20kHz, 2ch driven)150W (8ohms, 0.06% THD)Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)230 W (8 ohms, 10 % THD)Dynamic Power per Channel (8/6/4/2 ohms)175/220/295/410 WSurround Sound ProcessingCINEMA DSPYes (HD3)DSP Programs23Dialog Level AdjustmentYesVirtual Presence SpeakerYesDialogue LiftYes (no presence speakers required)SILENT CINEMA / Virtual CINEMA DSPYesDolby TrueHDYesDolby Digital PlusYesDolby Pro Logic IIxYesDTS-HD Master AudioYesAudio FeaturesPure DirectYes (with video on mode)Compressed Music EnhancerYesHigh-resolution Music EnhancerYesYPAO multi-point measurementYes with R.S.C. (Reflected Sound Control) and Angle measurementAdaptive DRC (Dynamic Range Control)YesInitial Volume & Maximum Volume SettingYesA.R.T. WedgeYesBi-amp capabilityYesAudio DelayYes (0-500 ms)192kHz/24-bit DACs for all channelsYes (Burr-Brown)Video Features4K Ultra HD Pass-through and upscalingYesHDMI 3D passthroughYesHDMI Audio Return ChannelYesComponent upconversionYesHDMI upscalingYes (Analogue to HDMI / HDMI to HDMI)Video adjustmentYes with variable parametersDeep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-SyncYesConnectivityHDMI Input/Output8 (front 1) / 2 (assignable for zone)HDMI CECYes (SCENE, Device Control)USB InputiPod/iPhone/iPad, USB Memory, Portable Audio PlayerNetwork PortYesAirPlayYesFront AV InputHDMI/USB/Analogue Audio/Optical/CompositeDigital Audio Input/Output: Optical4 (front 1) / 1Digital Audio Input/Output: Coaxial3 / 0Analog Audio Input/Output10 (front 1) / 1Phono InputYesComponent Video Input/Output4 / 1S-Video Input/Output4 / 1Composite Video Input/Output5 (front 1) / 1Multi-Channel Input8chPreout11.2chHeadphone Output1Tuner SectionFM/AM TunerYesUser InterfaceOn-screen displayGraphical User InterfaceSCENESCENE PLUS (12 sets)App ControlYes (iPhone/iPad/Android phone/tablet)Web Browser ControlYesRemote Control UnitYes (Preset, Learning, Macro, Full LED Backlight)Zone ControlZone 2 Audio OutputPreoutZone 3 Audio OutputPreoutZone 4 Audio OutputHDMIPowered ZoneZone 2/3Zone Video OutputHDMI/Component/S-Video/CompositeZone HDMIYesZone GUIYESRS-232C InterfaceYes+12V Trigger Output2Remote (IR) Input/Output2 / 2Party ModeYesGeneralStandby Power Consumption (IR only)≤0.3W (typical)Auto Power StandbyYesECO modeYesDimensions (W x H x D)435 x 192 x 467 mm; 17-1/8” x 7-1/2” x 18-3/8”Weight19.9 kg; 43.9 lbs.
